AOP Proxy
스프링 : https://docs.spring.io/spring-framework/reference/core/aop/introduction-proxies.html
스프링 부트 : https://docs.spring.vmware.com/spring-boot/docs/3.0.14/reference/htmlsingle/#features.aop
프레임워크 | AOP 프록시 기본값 | 조건 | 설명 |
---|---|---|---|
Spring Framework | JDK 동적 프록시 | 기본 | 인터페이스 기반이 권장되므로 JDK Proxy 선호 |
Spring Boot | CGLIB | 기본 (spring.aop.proxy-target-class=true ) | 실용성과 호환성 고려해서 CGLIB이 기본값 |
- Spring Boot 3.4.4
additional-spring-configuration-metadata.json
파일 확인해보기additional-spring-configuration-metadata.json
: Spring Boot의 application.properties / application.yml 자동완성 기능을 지원하기 위한 메타데이터 파일
1
2
3
4
5
6
{
"name": "spring.aop.proxy-target-class",
"type": "java.lang.Boolean",
"description": "Whether subclass-based (CGLIB) proxies are to be created (true), as opposed to standard Java interface-based proxies (false).",
"defaultValue": true
}
Spring Framework
- Spring의 철학은 “인터페이스 기반 프로그래밍”을 권장
- 따라서 프록시도 JDK 동적 프록시 (인터페이스 기반)을 기본으로 선택
- 클래스에 대해 프록시를 만들려면
proxyTargetClass = true
명시적으로 설정해야 함
Spring Boot
“편의성과 일관성”을 중요시함
- 많은 개발자들이 인터페이스 없이도 AOP 사용을 원함
- 특히 @Transactional, @Async, @Scheduled 같은 어노테이션 기반 기능은 클래스에 붙는 경우가 많음
- 그래서 Spring Boot는 자동 설정으로 CGLIB을 기본으로 사용하도록 설정함
Cglib (Byte Code Generation Library)
- github repo에 적힌 설명을 보면 다음과 같다.
Byte Code Generation Library is high level API to generate and transform Java byte code. It is used by AOP, testing, data access frameworks to generate dynamic proxy objects and intercept field access.
바이트코드 생성 라이브러리(Byte Code Generation Library)는 Java 바이트코드를 생성하고 변형하기 위한 고수준 API입니다. 이 라이브러리는 AOP(관점 지향 프로그래밍), 테스트, 데이터 접근 프레임워크 등에서 동적 프록시 객체를 생성하거나 필드 접근을 가로채기 위해 사용됩니다.
CGLIB 라이브러리 | Spring 내장 CGLIB | |
---|---|---|
클래스 경로 | net.sf.cglib.proxy.Enhancer | org.springframework.cglib.proxy.Enhancer |
소스 | cglib GitHub | Spring이 자체적으로 재포장 |
왜 Spring은 CGLIB을 내장시켰나 ?
- 라이브러리 충돌 방지
- 예전엔 다른 라이브러리도 cglib을 사용했는데, 버전 충돌이 자주 발생
- Spring은 이를 피하기 위해 패키지를 변경해서 자체 포함 (shading)
- 경량 의존성 구성
- Spring Boot 사용 시 spring-core 하나로 충분히 동작
- 개발자가 cglib를 별도로 추가할 필요 없음
- 일관성 보장
- Spring AOP, ProxyFactory, @Transactional 등 내부 동작이 cglib에 크게 의존
- 버전 변화나 API 변경의 영향을 줄이기 위해
org.springframework.cglib.*
로 고정
Cglib AOP Proxy 살펴보기
Controller에서 보면 구현체가
UserService$$SpringCGLIB$$
인 것을 확인할 수 있다.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
@Service
@RequiredArgsConstructor
public class UserService {
private final UserRepository userRepository;
private final UserHistoryRepository userHistoryRepository;
public List<User> getAllUsers() {
return userRepository.findAll();
}
@Transactional
public User create(User user) {
userRepository.save(user);
userHistoryRepository.save(UserHistory.from(user));
return user;
}
}
어디서 생성하는걸까 ?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
// org.springframework.aop.framework.CglibAopProxy#buildProxy
private Object buildProxy(@Nullable ClassLoader classLoader, boolean classOnly) {
if (logger.isTraceEnabled()) {
logger.trace("Creating CGLIB proxy: " + String.valueOf(this.advised.getTargetSource()));
}
try {
...
this.validateClassIfNecessary(proxySuperClass, classLoader);
Enhancer enhancer = this.createEnhancer();
...
enhancer.setSuperclass(proxySuperClass);
enhancer.setInterfaces(AopProxyUtils.completeProxiedInterfaces(this.advised));
enhancer.setNamingPolicy(SpringNamingPolicy.INSTANCE);
enhancer.setAttemptLoad(true);
enhancer.setStrategy(KotlinDetector.isKotlinType(proxySuperClass) ? new ClassLoaderAwareGeneratorStrategy(classLoader) : new ClassLoaderAwareGeneratorStrategy(classLoader, undeclaredThrowableStrategy));
Callback[] callbacks = this.getCallbacks(rootClass);
Class<?>[] types = new Class[callbacks.length];
for(x = 0; x < types.length; ++x) {
types[x] = callbacks[x].getClass();
}
ProxyCallbackFilter filter = new ProxyCallbackFilter(this.advised.getConfigurationOnlyCopy(), this.fixedInterceptorMap, this.fixedInterceptorOffset);
enhancer.setCallbackFilter(filter);
enhancer.setCallbackTypes(types);
Object var22;
try {
var22 = classOnly ? this.createProxyClass(enhancer) : this.createProxyClassAndInstance(enhancer, callbacks);
} finally {
filter.advised.reduceToAdvisorKey();
}
return var22;
}
...
}
Enhancer
위 코드에서 보면,
Enhancer
가 프록시 생성에서 중요한 역할을 역할을 하는 것처럼 보인다. org.springframework.cglib.proxy.Enhancer (CGLIB의 핵심 클래스)
- CGLIB은 인터페이스가 아닌 클래스 자체를 상속하여 프록시를 만들 때 사용됨
- 이때 프록시 클래스를 만드는 역할을 담당하는 것이
Enhancer
. 즉, CGLIB 프록시는 항상 Enhancer를 통해 생성됨- Enhancer는 내부적으로 ASM을 사용해서 프록시 클래스를 위한 바이트코드를 생성
- 이 바이트코드는 JVM의
defineClass()
를 통해 메모리에 로드됨
기능 | 설명 |
---|---|
setSuperclass(Class) | 어떤 클래스를 상속할지 지정 (프록시 대상 클래스) |
setCallbacks(Callback[]) | 메서드 호출 시 실행할 인터셉터 설정 |
setCallbackFilter(CallbackFilter) | 어떤 메서드에 어떤 Callback을 적용할지 결정 |
create() | 실제로 프록시 클래스를 생성하고 인스턴스화 |
1
2
3
4
5
6
7
8
9
10
11
12
// org.springframework.cglib.proxy.Enhancer
public void setCallback(final Callback callback) {
this.setCallbacks(new Callback[]{callback});
}
public void setCallbacks(Callback[] callbacks) {
if (callbacks != null && callbacks.length == 0) {
throw new IllegalArgumentException("Array cannot be empty");
} else {
this.callbacks = callbacks;
}
}
1
2
3
4
// org.springframework.cglib.proxy.MethodInterceptor
public interface MethodInterceptor extends Callback {
Object intercept(Object obj, Method method, Object[] args, MethodProxy proxy) throws Throwable;
}
예제
1
2
3
4
5
6
7
8
9
10
11
public class TempInterceptor implements MethodInterceptor {
@Override
public Object intercept(Object obj, Method method, Object[] args, MethodProxy proxy) throws Throwable {
System.out.println("Before method: " + method.getName());
Object result = proxy.invokeSuper(obj, args); // 원본 메서드 호출
System.out.println("After method: " + method.getName());
return result;
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
import org.springframework.cglib.proxy.Enhancer;
public class Main {
public static void main(String[] args) {
Enhancer enhancer = new Enhancer();
enhancer.setSuperclass(TempService.class); // 원본 클래스 지정
enhancer.setCallback(new TempInterceptor()); // 인터셉터 지정
// 프록시 인스턴스 생성
TempService proxy = (TempService) enhancer.create(); // TempService$$EnhancerByCGLIB$$
// 프록시 메서드 호출 (intercept → invokeSuper → 원본 호출)
proxy.hello("CGLIB");
}
}
- 결과
1 2 3
Before method: hello Hello, CGLIB After method: hello
- final 클래스는 프록시 생성 안됨 (상속을 못하기 때문에)
1
Caused by: org.springframework.aop.framework.AopConfigException: Could not generate CGLIB subclass of class ... : Common causes of this problem include using a final class or a non-visible class

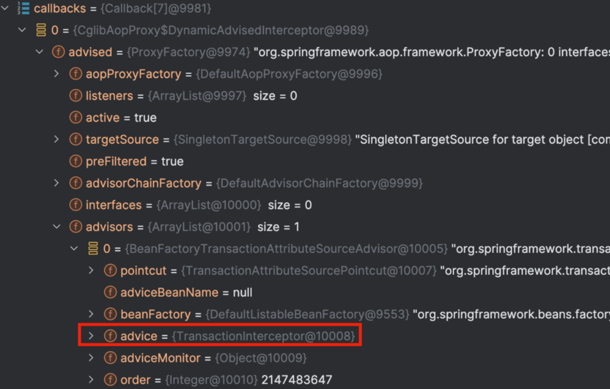

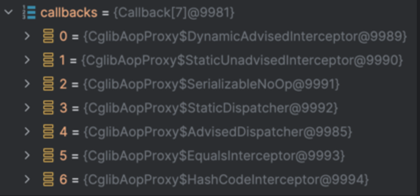

@Transactional로 인해 생성된 프록시 객체에는 어떤 Interceptor가 세팅될까 ?
DynamicAdvisedInterceptor
- 실제 프록시 메서드 실행 시 AOP advice를 연결하는 핵심 인터셉터
DynamicAdvisedInterceptor#intercept()
는 프록시된 메서드가 호출될 때, 실제 메서드 호출 전 이 메서드가 먼저 실행됨

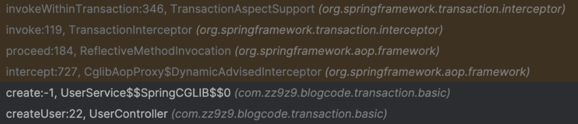

- 실제 호출흐름
※ 참고 : AOP 관련 용어
- Advice : 실제로 실행되는 부가 기능 로직 (예: 로깅, 트랜잭션 시작/커밋, 보안 체크 등)
- Pointcut : 어디에 Advice를 적용할지 지정. (예: com.example.service..(..)에 있는 모든 메서드)
- Advisor : Pointcut + Advice의 묶음. 즉, 실행 위치 + 실행할 로직을 함께 보유하는 AOP 구성 단위
- JoinPoint: 애플리케이션 실행 중에 AOP로 가로챌 수 있는 모든 지점 (Spring AOP에서는 오직 메서드 실행만 해당)
TransactionInterceptor, TransactionAspectSupport
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
// org.springframework.transaction.interceptor.TransactionInterceptor
public class TransactionInterceptor extends TransactionAspectSupport implements MethodInterceptor, Serializable {
public TransactionInterceptor() {
}
public TransactionInterceptor(TransactionManager ptm, TransactionAttributeSource tas) {
this.setTransactionManager(ptm);
this.setTransactionAttributeSource(tas);
}
...
@Nullable
public Object invoke(MethodInvocation invocation) throws Throwable {
Class<?> targetClass = invocation.getThis() != null ? AopUtils.getTargetClass(invocation.getThis()) : null;
Method var10001 = invocation.getMethod();
Objects.requireNonNull(invocation);
return this.invokeWithinTransaction(var10001, targetClass, invocation::proceed);
}
...
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
// org.springframework.transaction.interceptor.TransactionAspectSupport#invokeWithinTransaction
@Nullable
protected Object invokeWithinTransaction(Method method, @Nullable Class<?> targetClass, final InvocationCallback invocation) throws Throwable {
TransactionAttributeSource tas = this.getTransactionAttributeSource();
TransactionAttribute txAttr = tas != null ? tas.getTransactionAttribute(method, targetClass) : null;
TransactionManager tm = this.determineTransactionManager(txAttr, targetClass);
if (this.reactiveAdapterRegistry != null && tm instanceof ReactiveTransactionManager rtm) {
...
} else {
PlatformTransactionManager ptm = this.asPlatformTransactionManager(tm);
String joinpointIdentification = this.methodIdentification(method, targetClass, txAttr);
if (txAttr != null && ptm instanceof CallbackPreferringPlatformTransactionManager cpptm) {
...
} else {
TransactionInfo txInfo = this.createTransactionIfNecessary(ptm, txAttr, joinpointIdentification);
Object retVal;
try {
retVal = invocation.proceedWithInvocation();
} catch (Throwable var23) {
this.completeTransactionAfterThrowing(txInfo, var23);
throw var23;
} finally {
this.cleanupTransactionInfo(txInfo);
}
if (retVal != null && txAttr != null) {
TransactionStatus status = txInfo.getTransactionStatus();
if (status != null) {
...
}
}
this.commitTransactionAfterReturning(txInfo);
return retVal;
}
}
}
